TECHNICAL PARAMETER

• container manufactured according to DIN 30 722.1

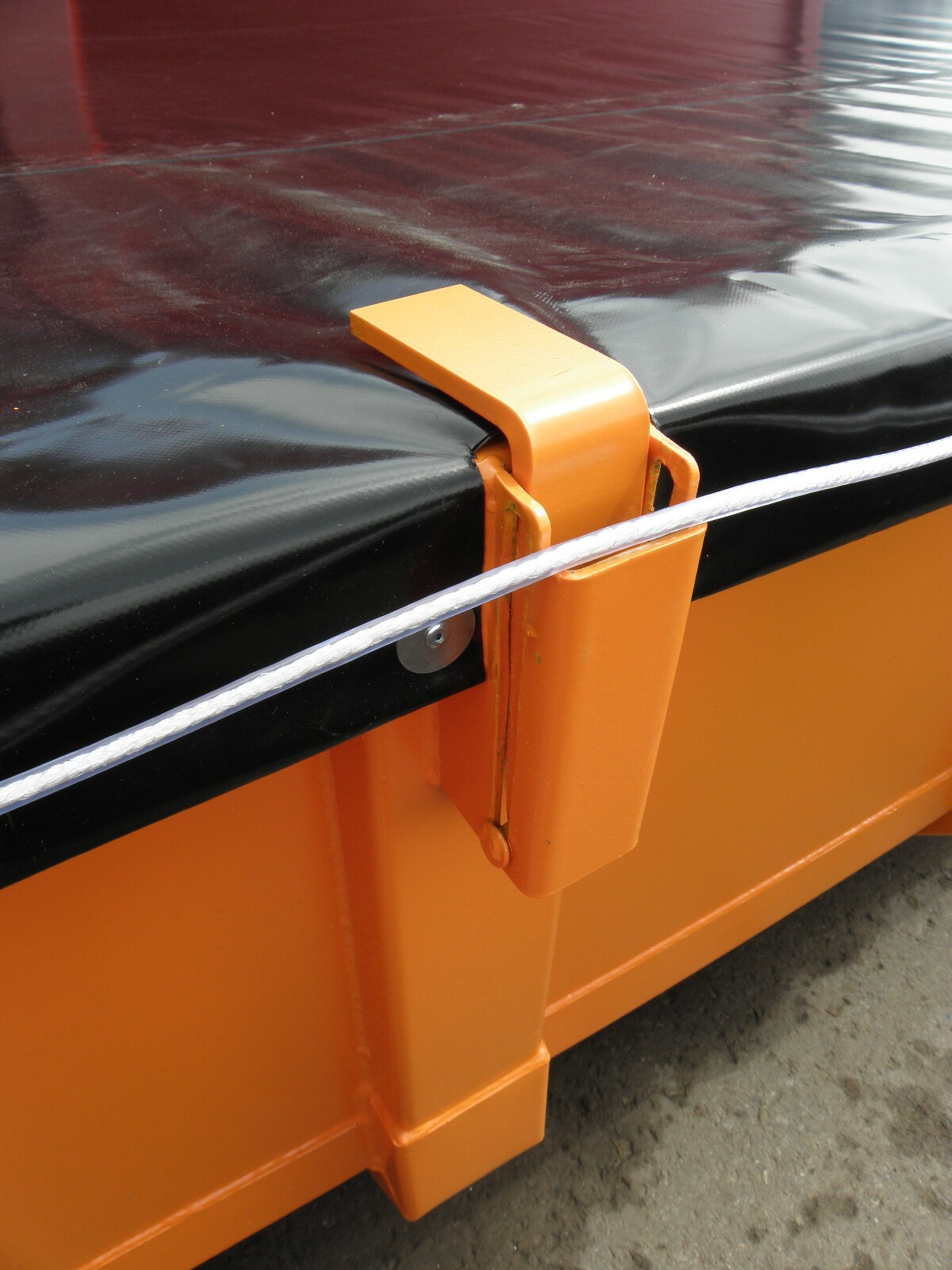

• feed hook, height – 1570 mm – hinged
• supporting frame – INP 180 – outer dimension 1065 mm – reinforced in the middle

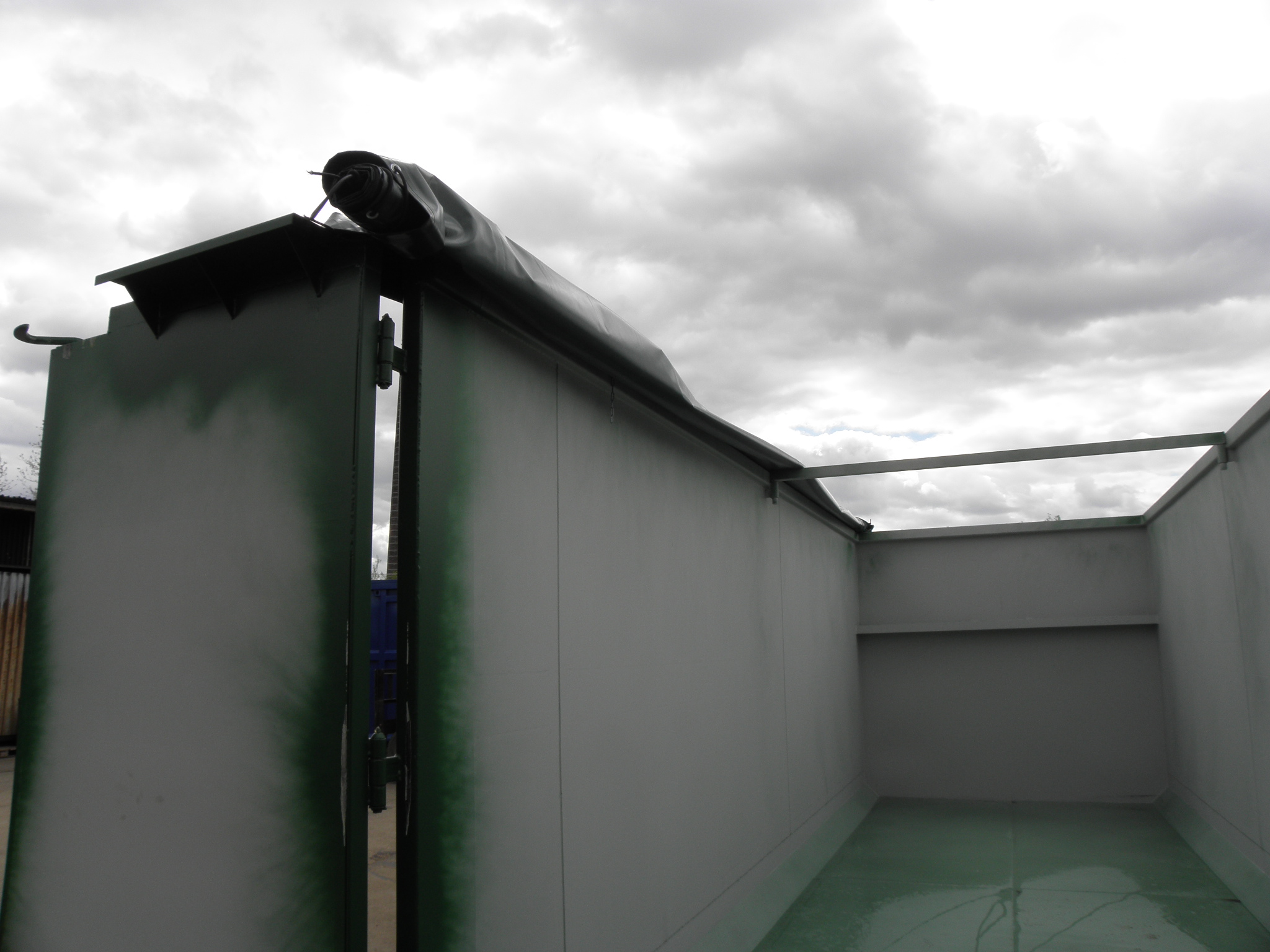

• removable rolling tarpaulin – attachment to the left or right in the direction of travel

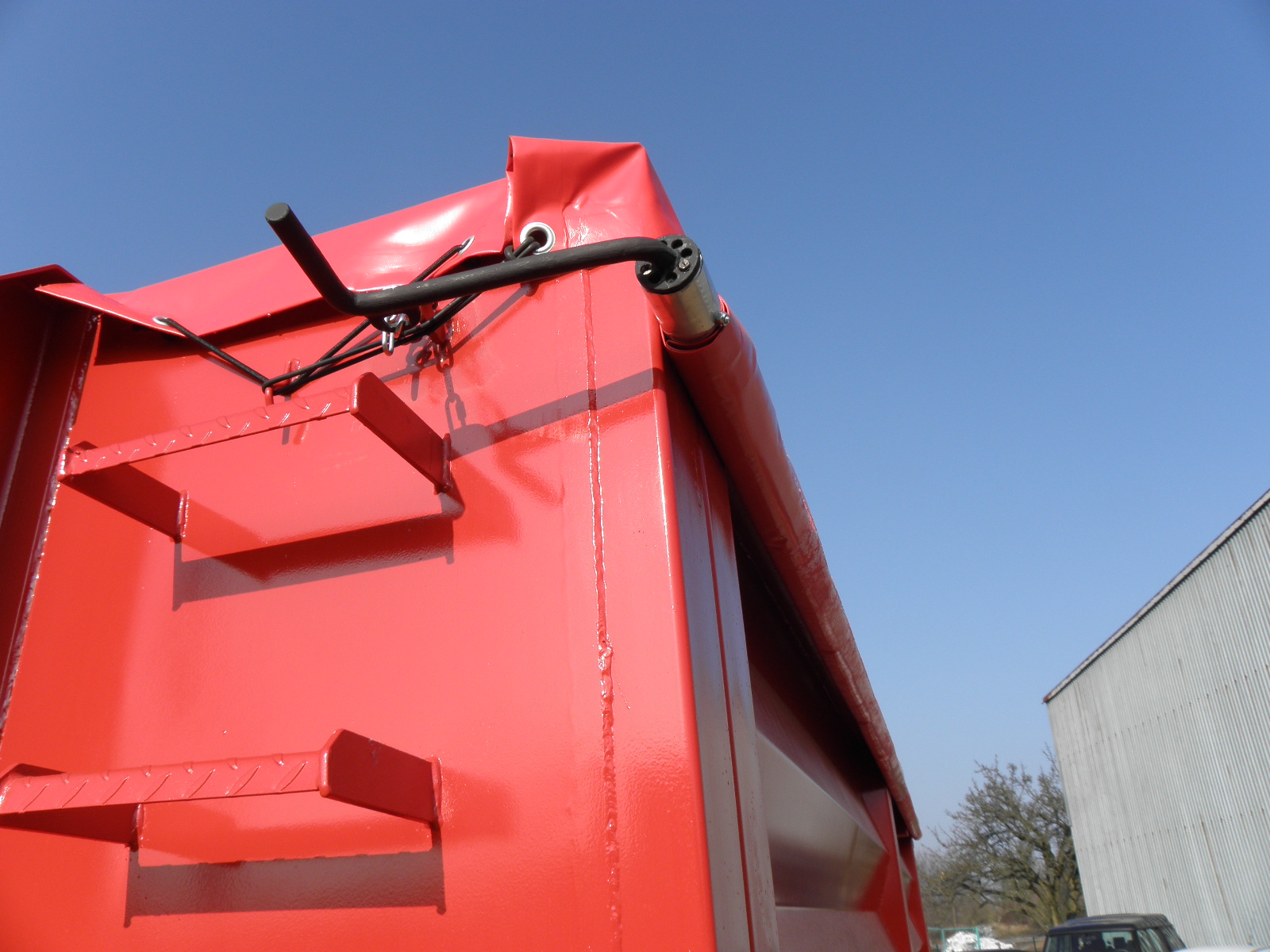

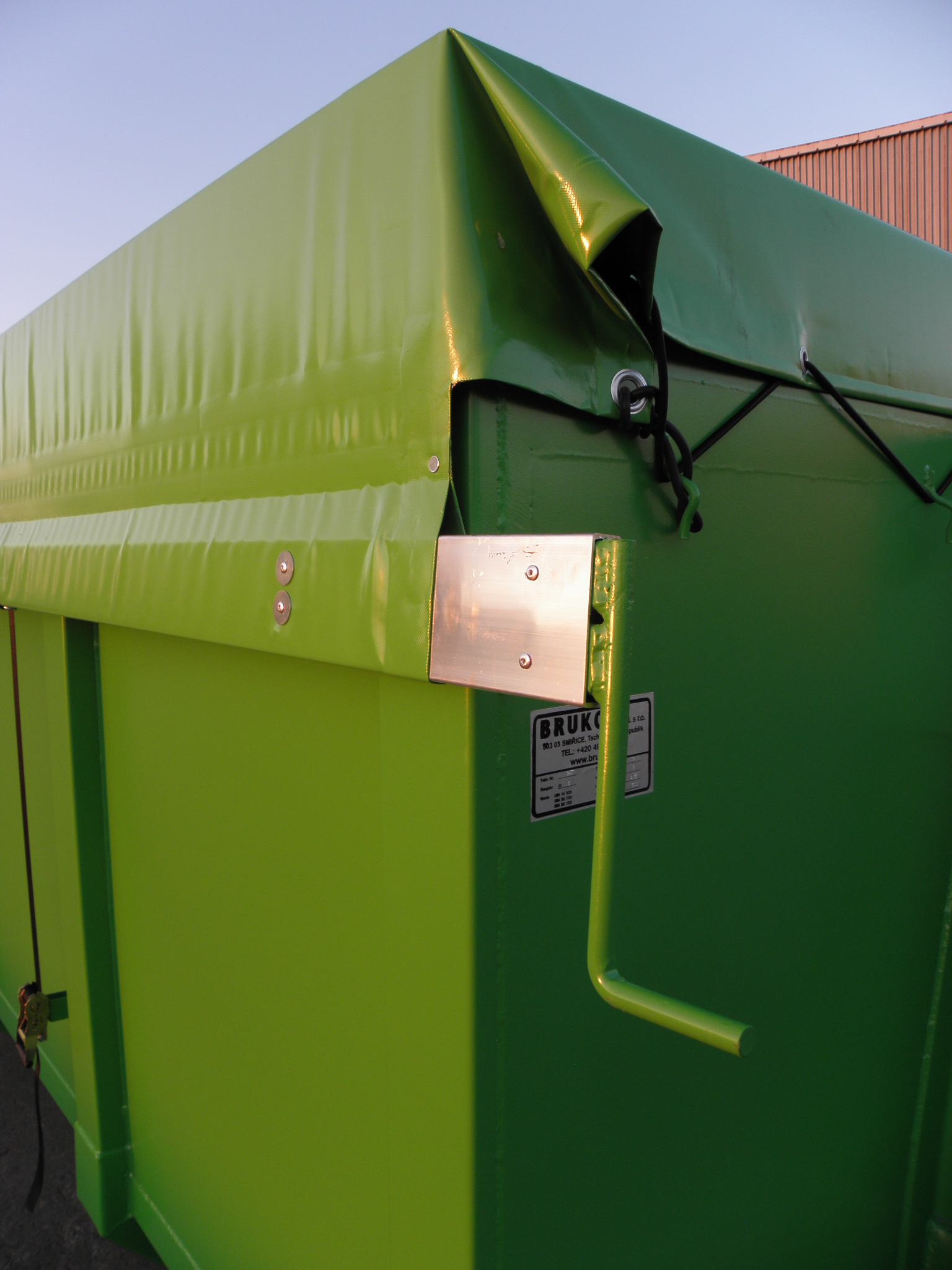

• scrolling using a square aluminum profile with a handle
• 3x firmly welded holder on the upper edge of the container against overturning of the sheet
• securing the tarpaulin – side: for ratchet courts, front side and door: rubber rope for net hooks
• 1x fixed or removable spacer in the middle of the container to prevent the sheet from falling

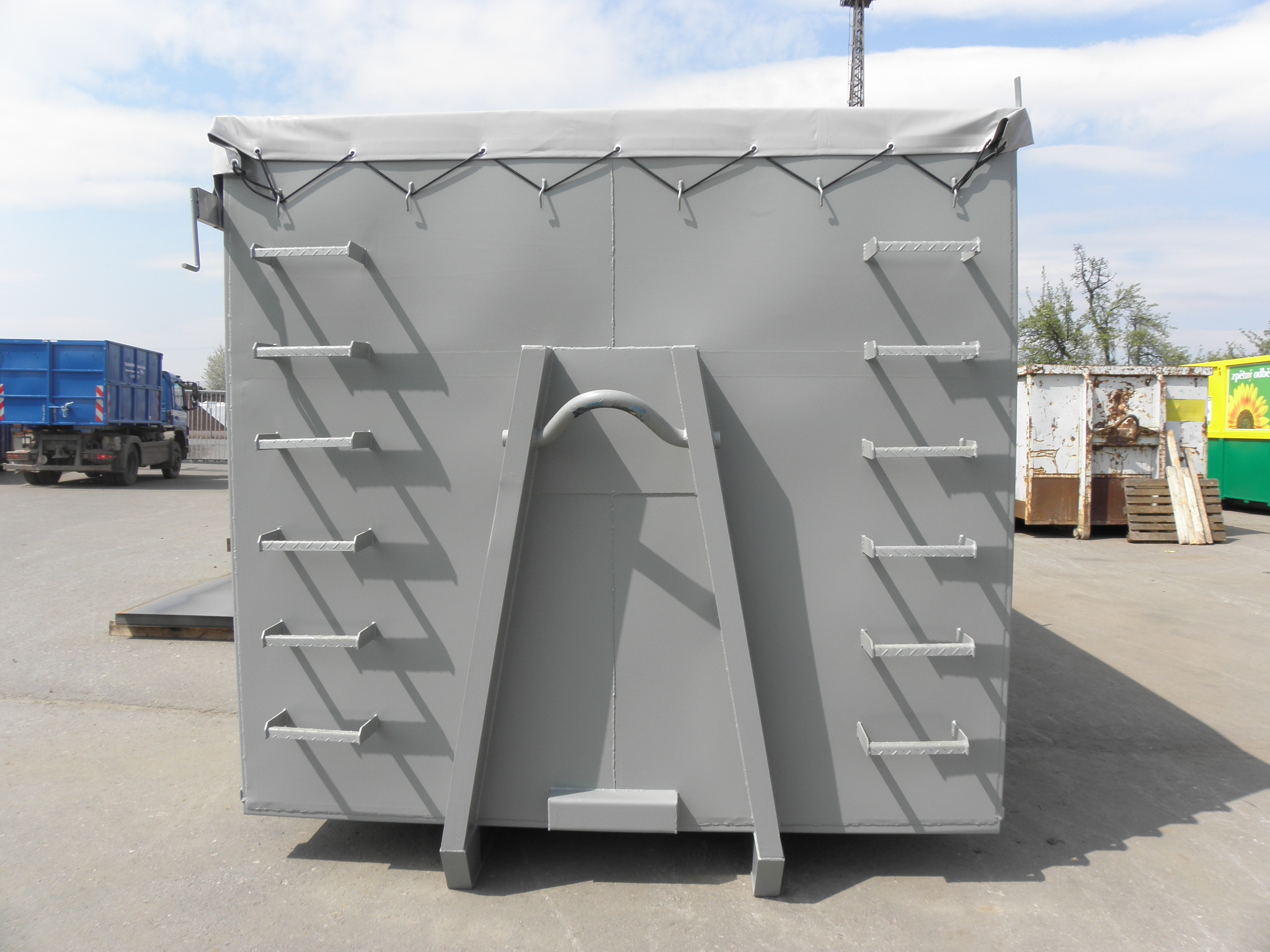

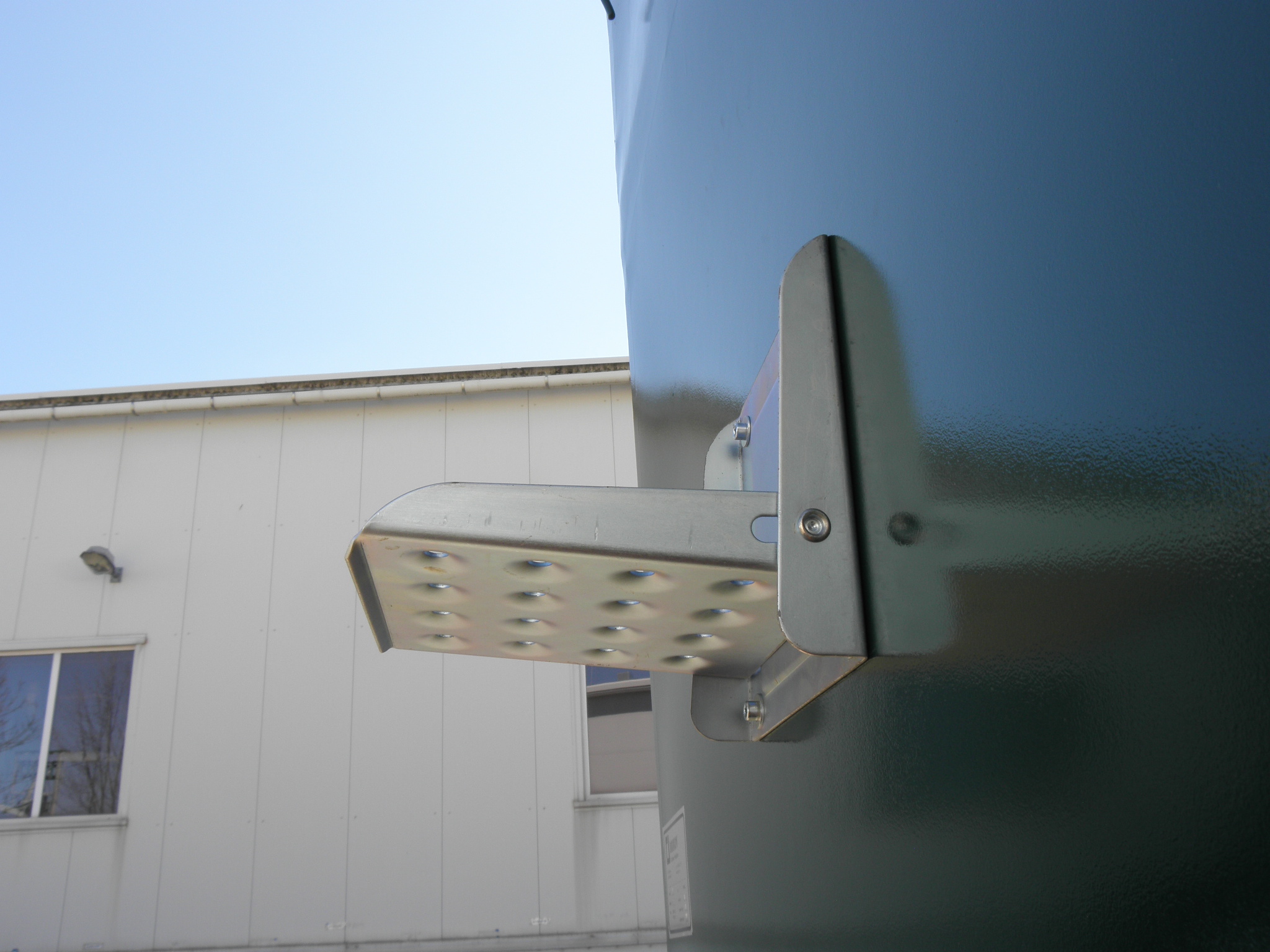

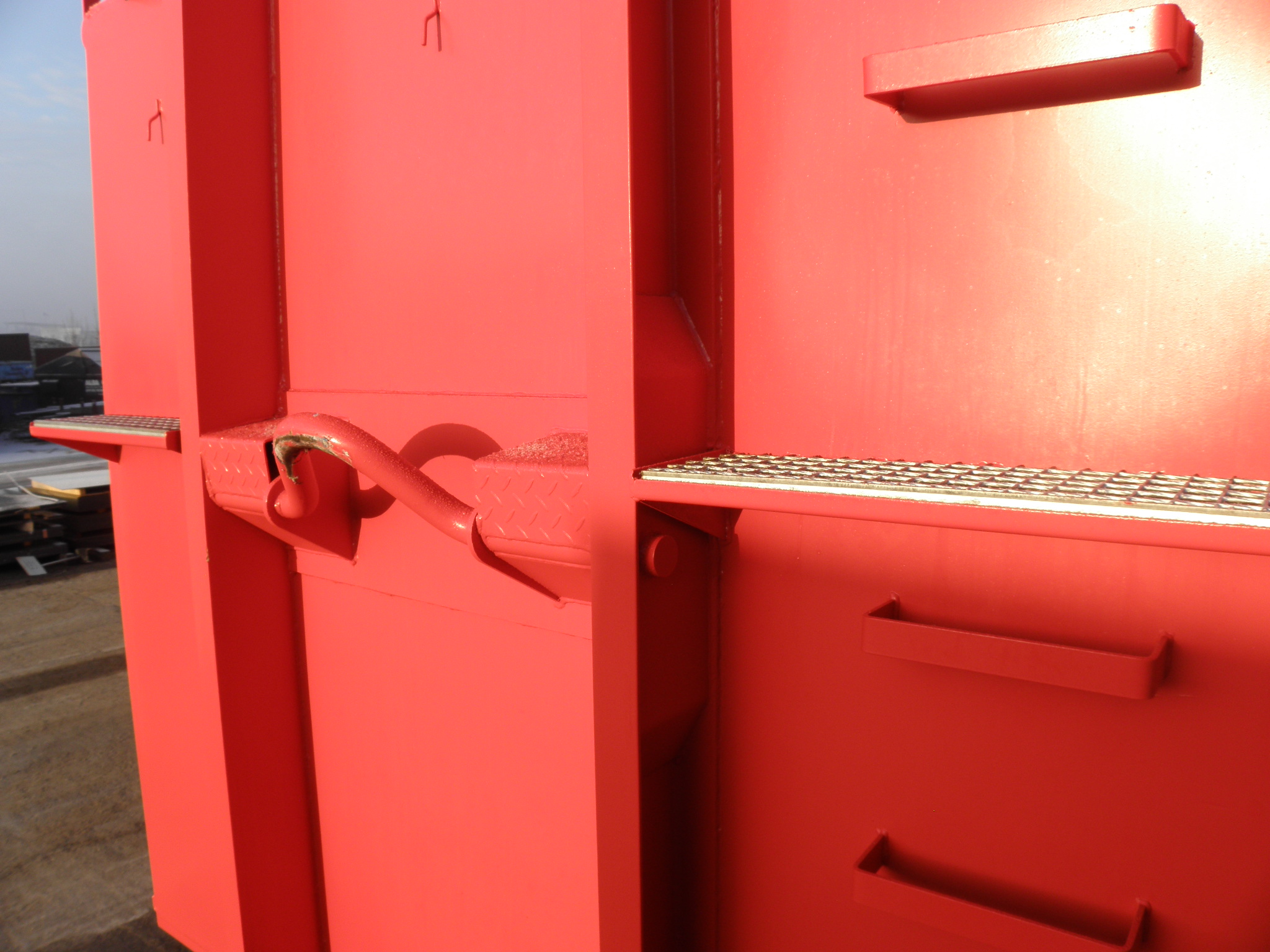

• 1x row of steps on the left + 1x overstep step on the right on the front of the container
• container size according to the customer’s wishes

standard equipment
