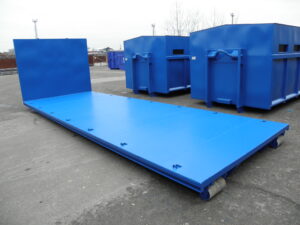

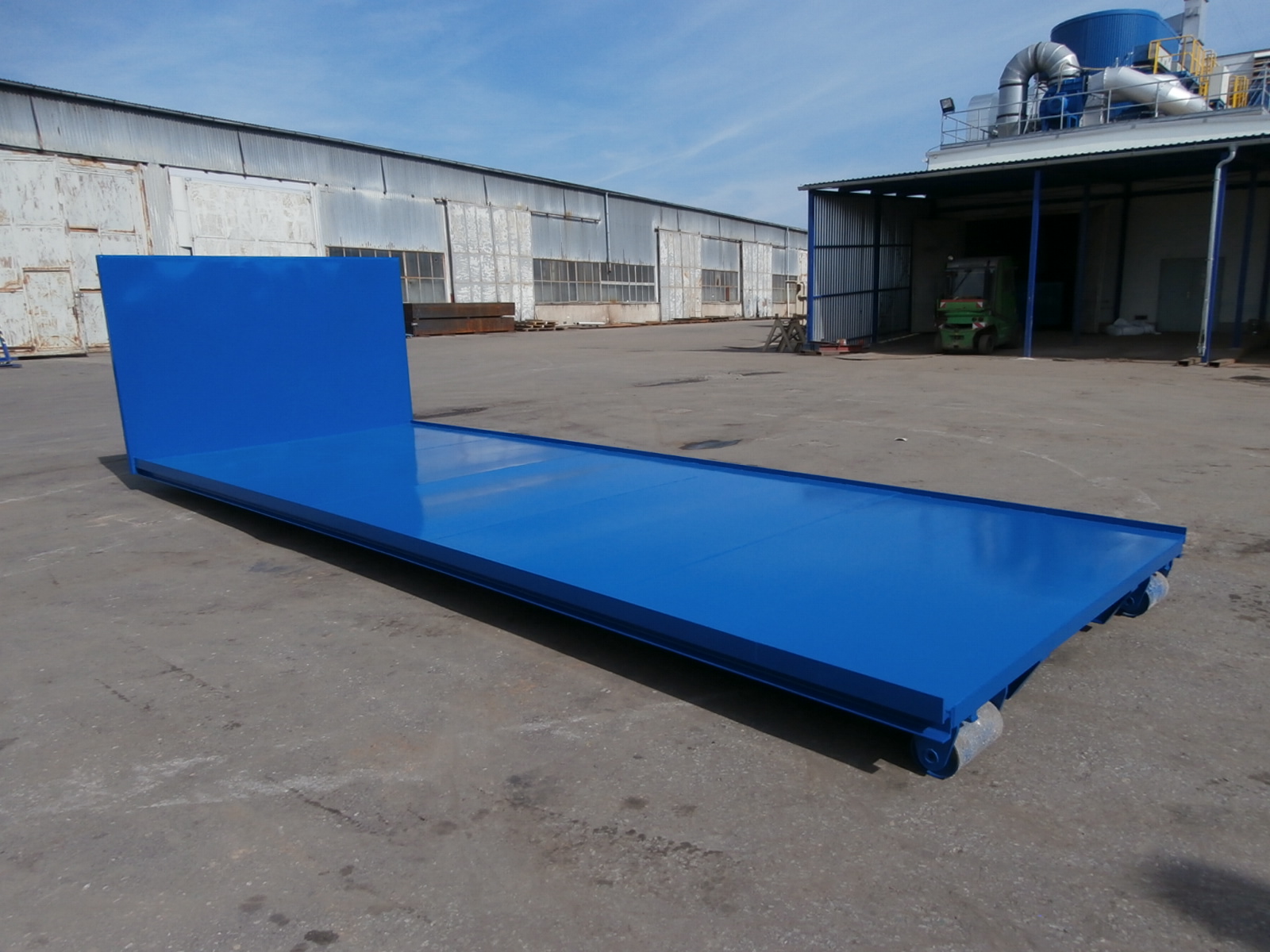

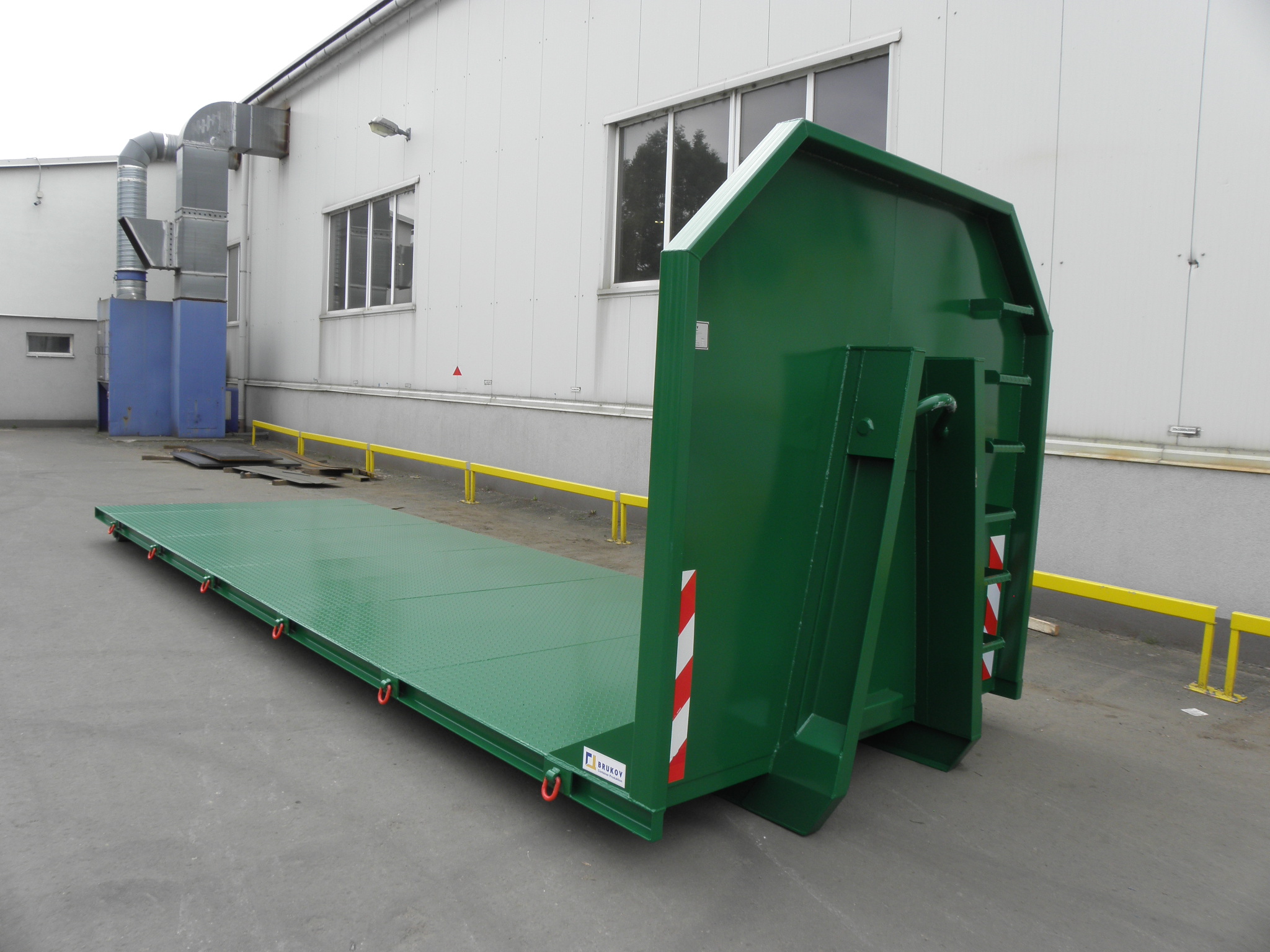

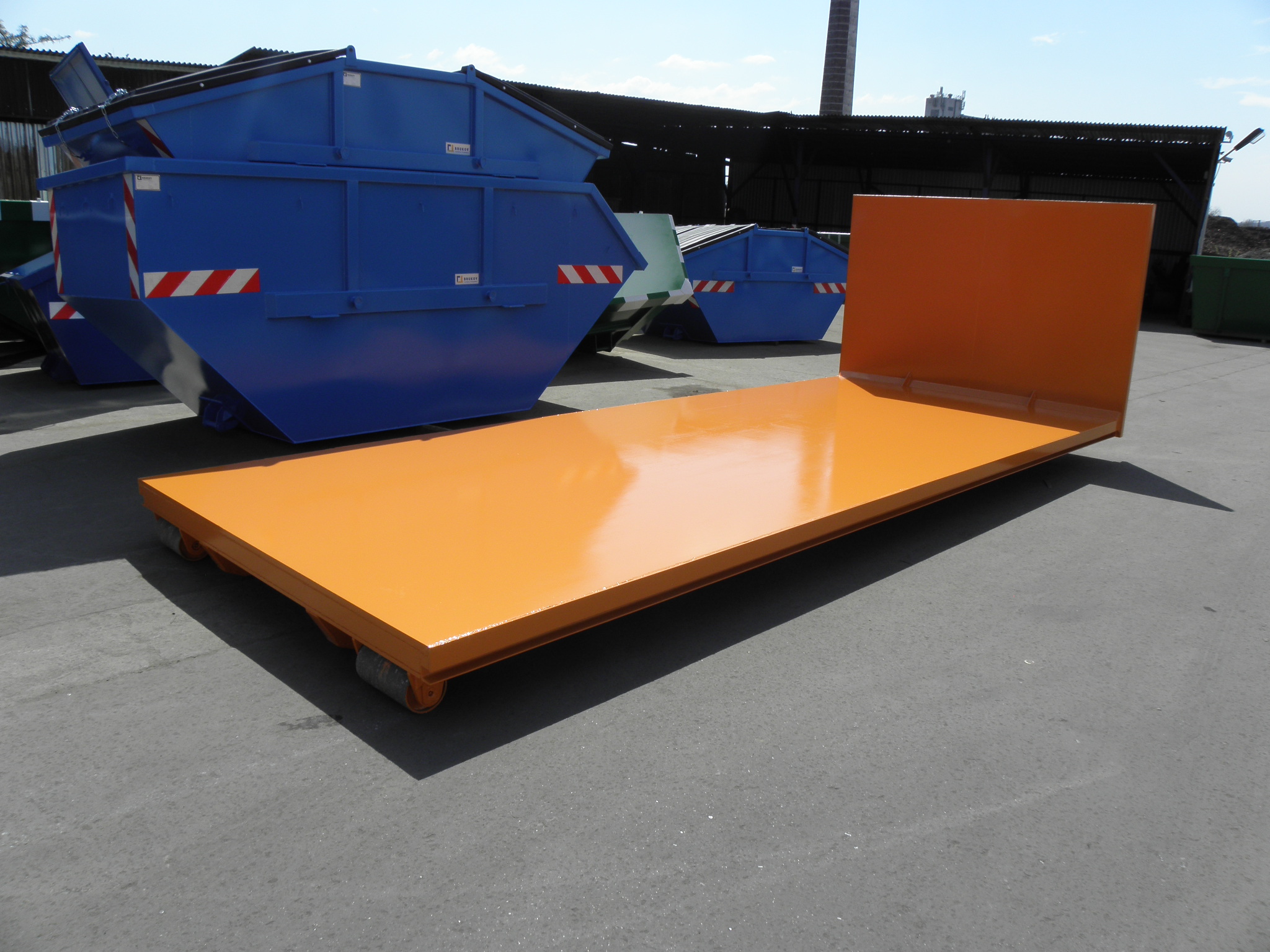

ABROLL platform
Abroll platform containers are mainly used for the transport of larger loads such as building components, smaller agricultural, construction machinery, etc. This type of container enables easy handling and loading of construction machines and their transport between individual constructions. The container can be made with side casings, including access ramps.
TECHNICAL PARAMETER
- container manufactured according to DIN 30 722.1

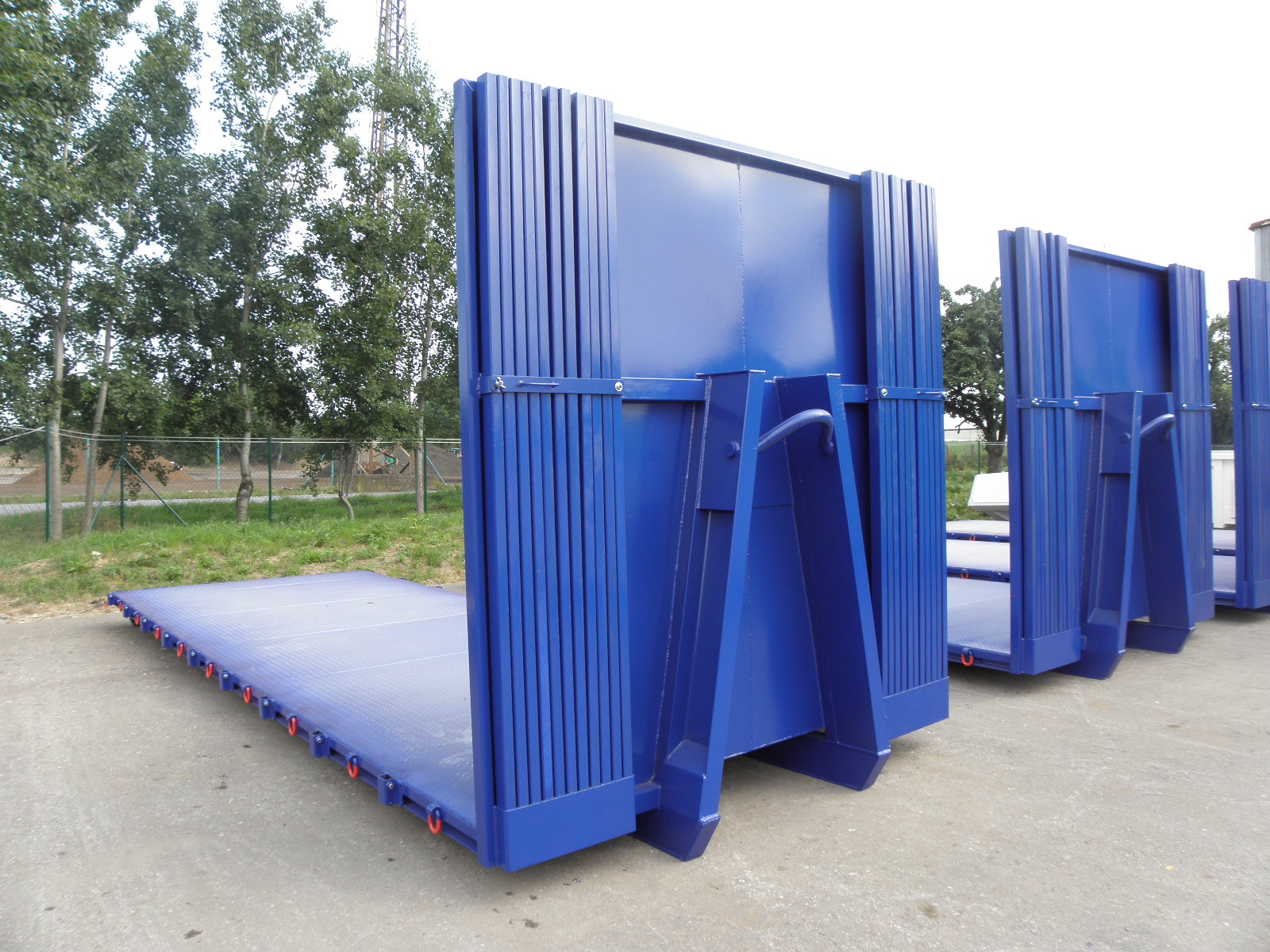

- feed hook, height – 1570 mm
- supporting frame – INP 180 – outer dimension 1065 mm – reinforced in the middle
- floor – metal sheet, th. 5 to 8 mm, quality of the material S 235 JR

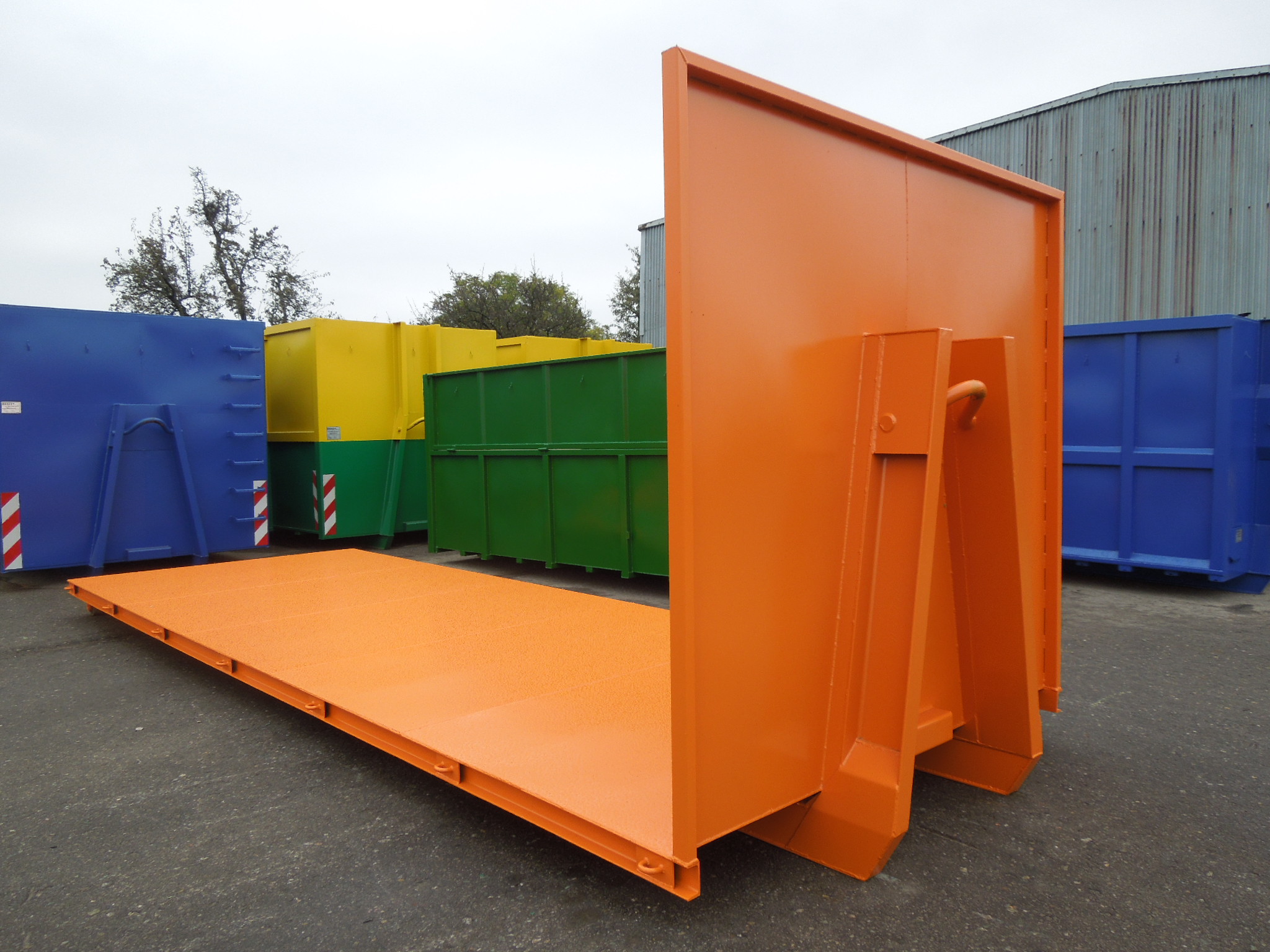

- front wall – metal sheet, th. 3 mm, quality of the material S 235 JR

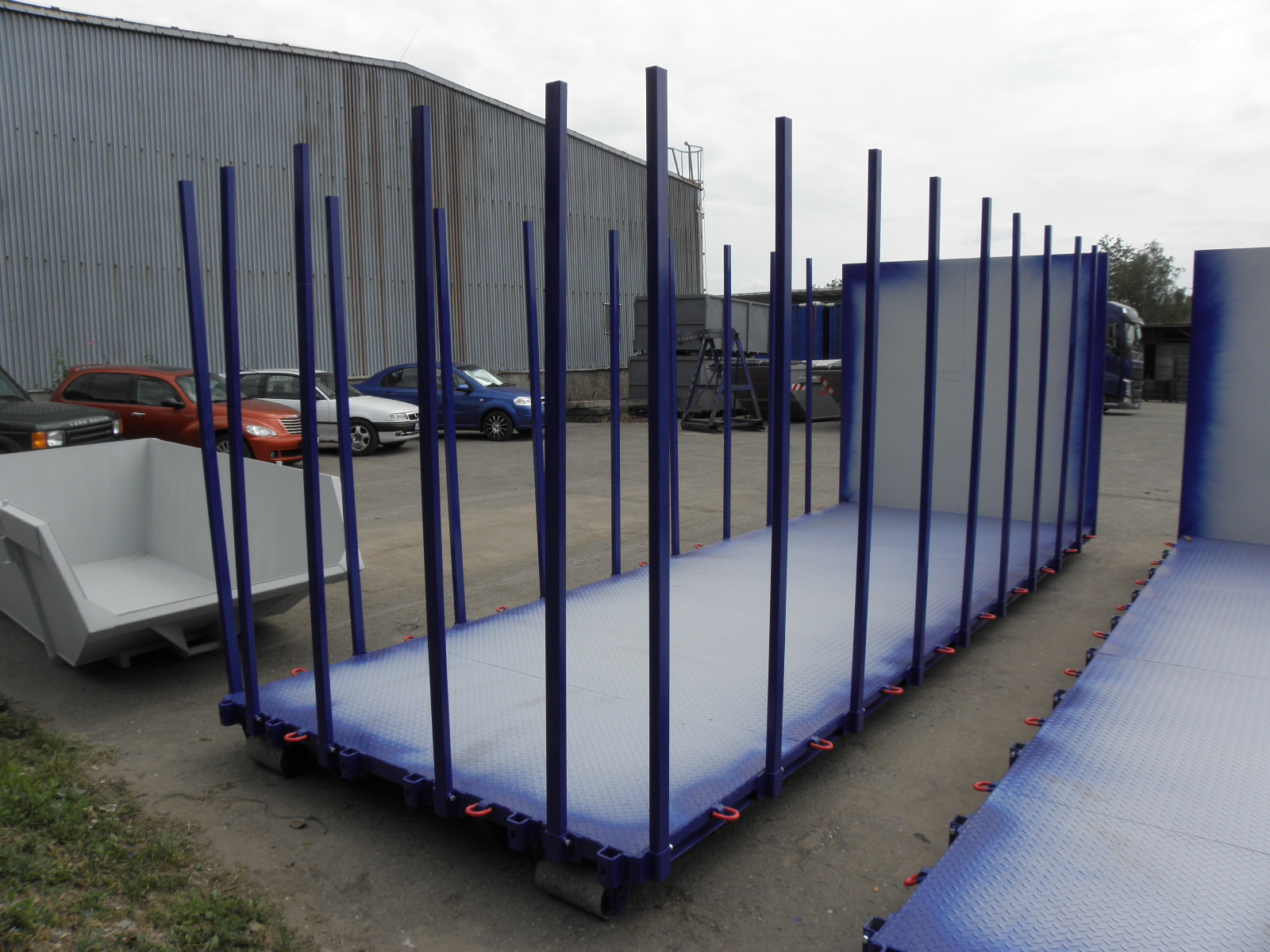

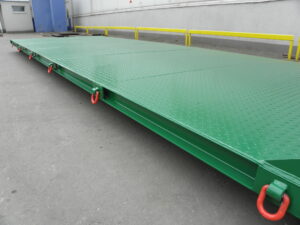

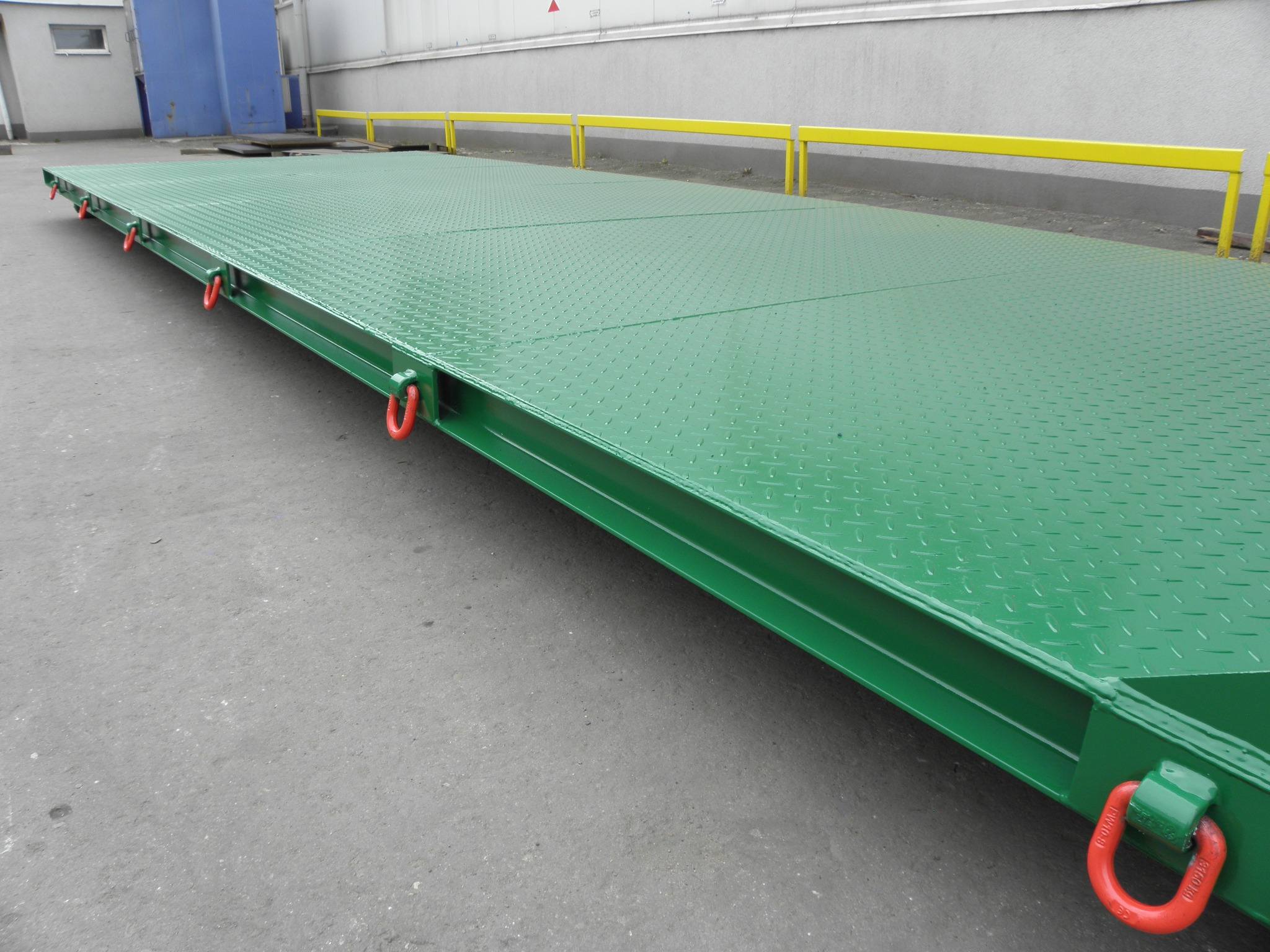

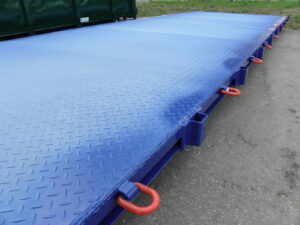

- courting profile or eyes from the side of the platform
- optional:

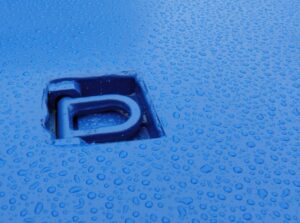

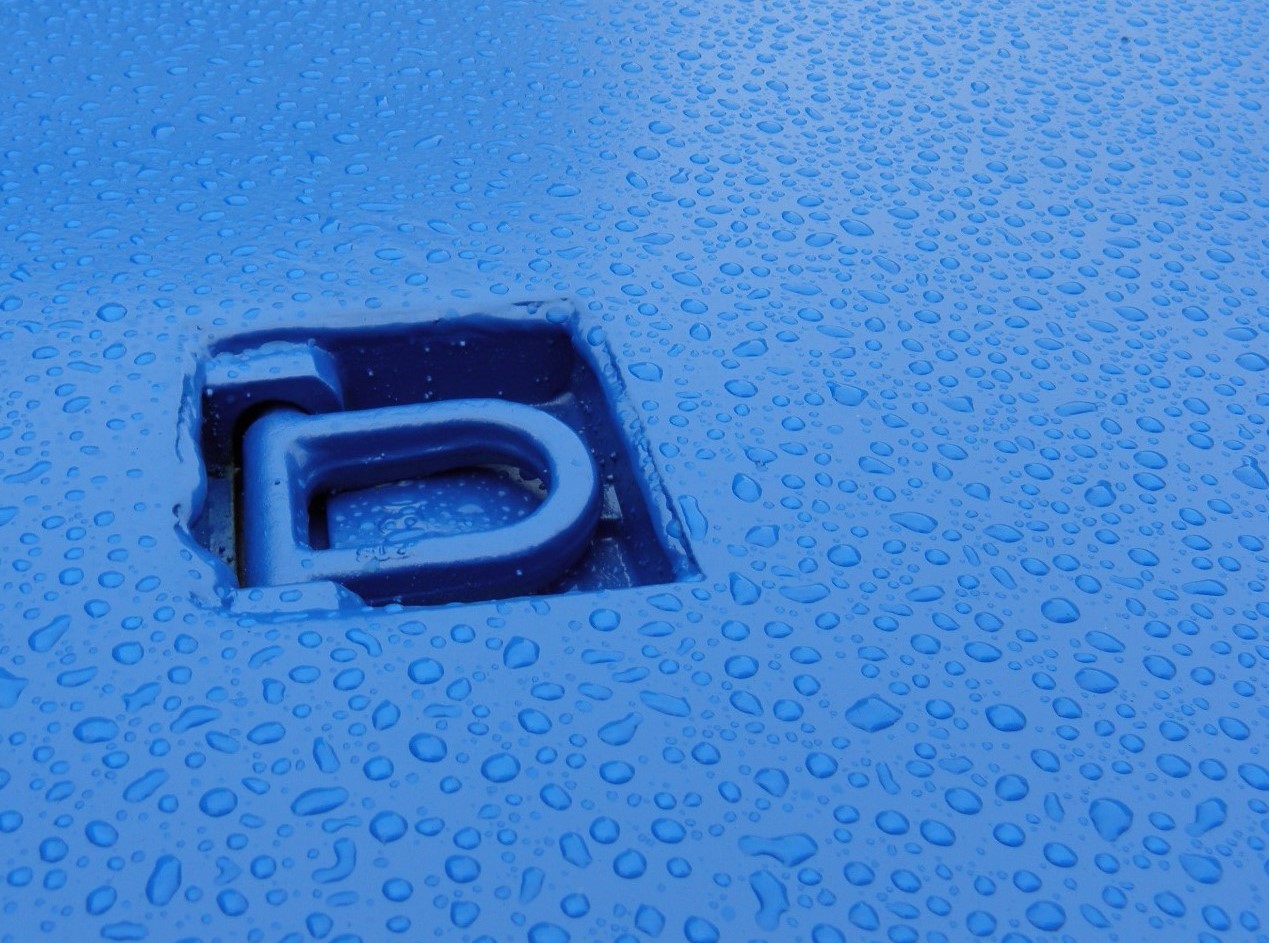

lashing eyes recessed in the floor for courting transported machines

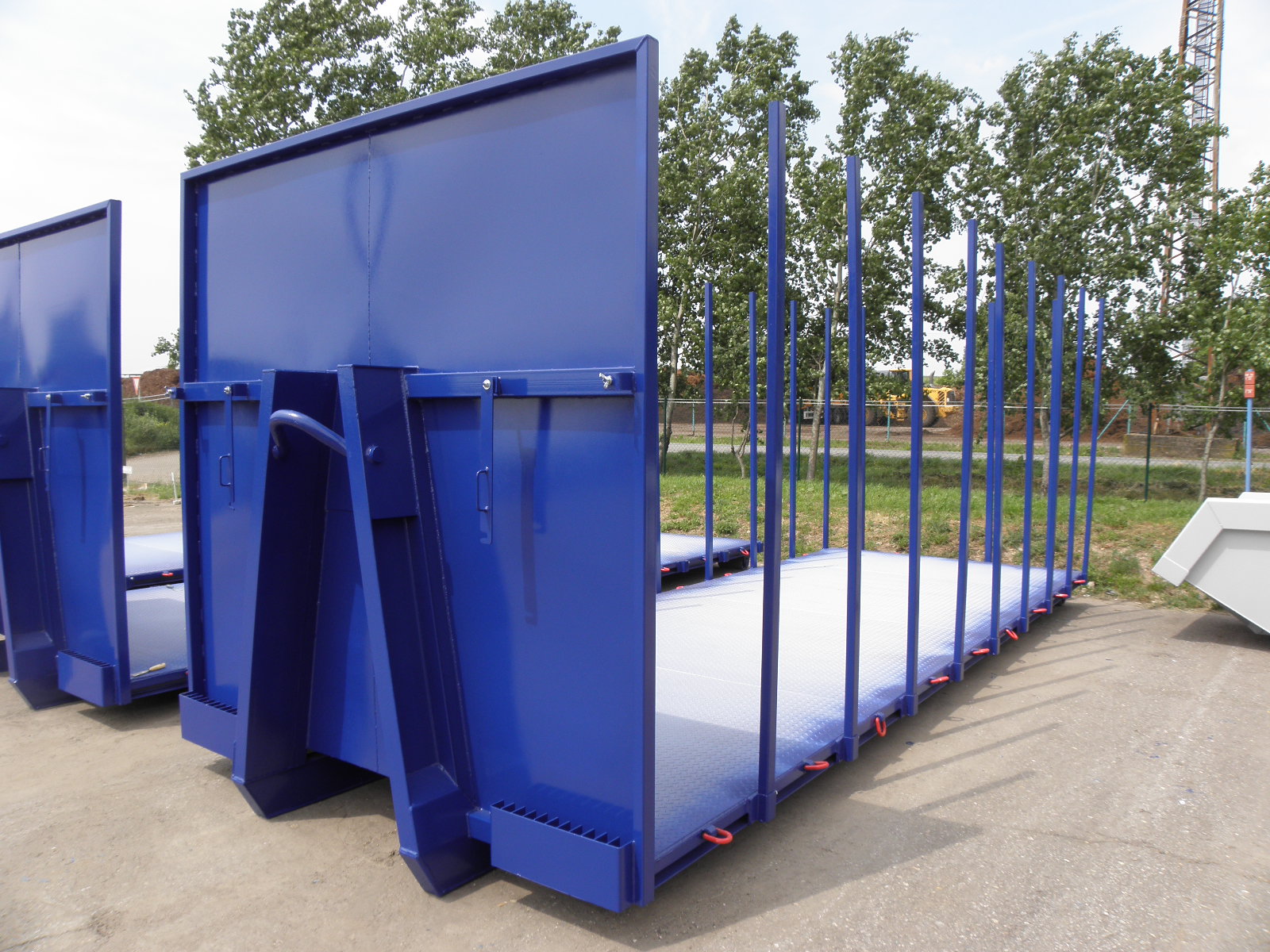

side casing
access ramp
- container length according to the customer’s wishes
